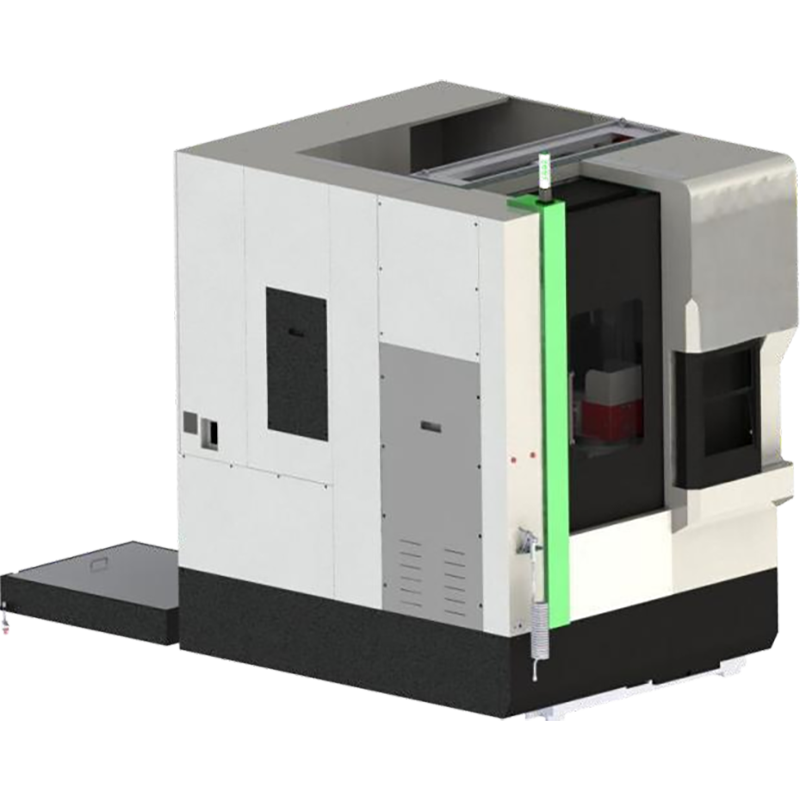

High-precision vertical lathe is a high-end CNC machine tool with a vertical spindle and a horizontally rotating worktable. It is specially designed for performing complex processing such as turning, milling, drilling, and tapping on large, heavy, or precision rotating parts with micron-level precision.
máx. Viaje del eje X :
-370~480mmmáx. Viaje del eje Z :
800mmMain Structure of CNC Vertical Lathe Machine
 |
Vertical spindle: The workpiece's gravity naturally presses against the worktable, providing high clamping rigidity and suitable for large-diameter and extra-heavy discs and rings. Mill-turning: Simultaneously performs turning, milling, drilling, tapping, and boring, minimizing secondary clamping errors. Highly rigid structure: A one-piece cast iron bed, symmetrical columns, and wide-span guideways withstand heavy cutting forces. High precision: Closed-loop linear scale and thermal compensation system. |
Applicable Industries:
• Aerospace: Landing gear actuators, turbine housings
• Wind power: Wheel hubs, bearing rings, gear rings
• Construction machinery: Hydraulic valve bodies, pump housings
Key Technology Parameters
| Project | Unit | Specification | Remark | |
| Maximum rotation diameter | mm | 1000 | ||
| Maximum turning height | mm | 800 | ||
| Maximum turning diameter | mm | 800 | ||
| Spindle through hole diameter | mm | ￠ 80 | ||
| Maximum bar processing diameter | mm | ￠ 75 | ||
| Spindle end type and code | A2-11 | |||
| Single spindle Spindle box | ||||
| Spindle speed range | r/ min / Nm | 50～1500 | FANUC 0i - TF | |
| Main motor Output Power | ||||
| 30 Minutes/Continuous | kW | 18.5/22 | β IIP30/8000 | |
| Standard chuck | Chuck diameter | inch | Customized | |
| X Axis rapid traverse speed | m/ min | 20 | Roller guides | |
| Z Axis rapid traverse speed | m/ min | 20 | Rolling guides | |
| X Axis travel | mm | -370~480 | ||
| Z Axis travel | mm | 800 | ||
| Standard tool holder | Servo turret 8T | |||
| Center water outlet | MPa | 3 | ||
| Tool size | Boring bar diameter | mm | Ф50 | |
| Knife disc | Can | |||
| Machine weight | Total weight | kg | 11800 | |
| Machine tool appearance | Length × Width × Height | mm | 2700*2823（4400）*3550 | Without chip removal (included) |
